24V Square Stainless Steel Lifts Elevator Lop Button Touchless Button for Lift
Zeo contact ,elevator touchless button can detect interaction from a distance of 1~cm from the button surface to enable users to make their selection with no physical contact .
Prevent infection with touch-less sensor ,elevator touch-less button , when you are in the elevator . Health is everything for everyone .
Product description
| Model Number | CNBS 1007 |
| Product name | Touchless Push Button for Elevator |
| Voltage | DC24V/12V |
| Life Span | >3million |

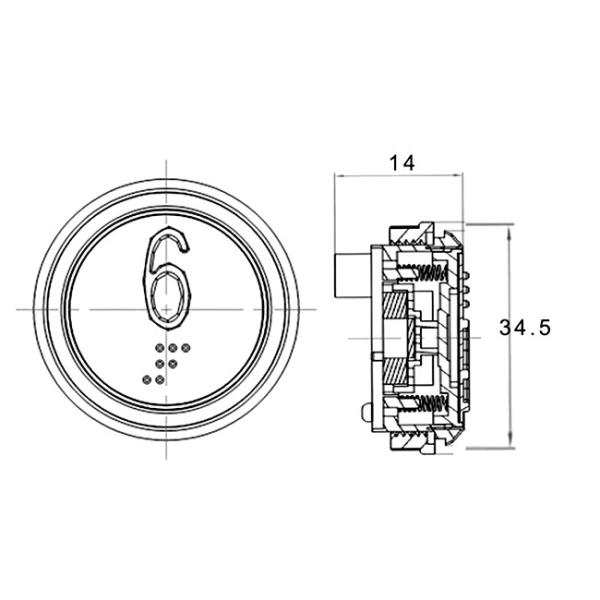

| Cutout Dimension | 32.5mm |
| Sensing Distance | 0-14mm |
| Led Color | Blue/Red/Yellow/Orange/Green/White |
| Used for | Elevator, Lift |
| Lamp Current | 18mA±2mA |
| Total Button Current | 45mA±2mA |
| Insulation Resistance | > 100mΩ, between charged and uncharged |
| Principle | Capacitance |
| Main Drive Life | ≥220000 Hours |
| Drive Rated Current | at DC24V, 30mA |
| Delivery | DHL, TNT, FedEx , Air, Sea, |
| Supply Ability | 10000 piece/ pieces per Month |
| Package Details | Carton/Wooden Case |
wire conection
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
Shanghai Zan Feng (CZANF) Technology Co., Ltd provides the customized service and solutions for elevator electrical system and specializes in elevator components. The product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of elevator.
We pursue the sustainable success with customers. When it comes to Elevator components, we are about as materials as they come. That’s because we are in the elevator components many years with very wide supply system. We are more committed to the intelligent development of elevators in the near future and becoming the preferred partner for smart and sustainable city development.
